988 DESOLDERING STATION

988 DESOLDERING STATION
DESOLDERING STATION

INNOVATIVE FEATURES OF THE ALL NEW 988:

ENERGY SAVER: Automatically powers down after 15 minutes of idling as indicated by the Pause
LED-saving power while extending tip life.
DELAYED SUCTION: Pump will continue sucking for 1-2 seconds after actuator is released, clears
the tubes and prevents clogging of the tip.
ANALOG AIR PRESSURE GUARE.
COMBO UNIT: Integrates the solder and desoldering functions into one, space saving system.
CERAMIC ELEMENT: Solder wand is our ergonomic mini-handle.

STANDARD FEATURES:

TEMPERATURE STABILITY:
Tip temperature accurated to within ± 3 °C (6°F)
SPIKE FREE CIRCUITY:
Zero Voltage switching and fully grounded design makes this unit safe electro-sensitive devices.
ELECTRONIC TEMPERATURE CONTROL:
Adjustable temperature w/o changing tips.
VACUUM SWITCH:
The pump is controlled by a finger actuated, thyristor switching circuit located on the desoldering handle.
IRON ASSEMBLIES:
Detachable solder (new ergonomic mini-handle) and desolder wands for ease of use and repair.
PUMP:
A self-contained vacuum pump engineered to provide continuous, maintenance free operation.
ISOLATED POWER SUPPLY:
Powered by a high quality 24VAC transformer.
ACCESSORIES:
Optional XYFX1 fume extractor kit or SMD tip adapter.

SPECIFICATIONS

Model	988
Mains power VAC	As requestd

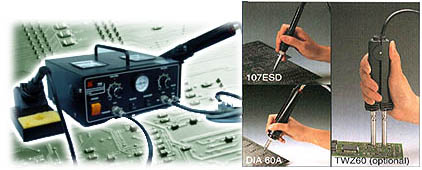

Iron assembly	Solder	Desolder	Tweezers (optional)
Part #	107ESD	DIA60A	TWZ60
Heater output	24Va.c.	24Va.c.	24Va.c.
Heater power	60W	60W	30W x 2
Vacuum pump operating voltage	115Va.c. for 100-120V 230V.a.c. for 220-240V mains power
Temperature range	200-480°C	300-450°C	150-430°C
	400-900°F	570-850°F	300-800°F
Standard tip	* 44-510601 (B01)	* 44-915412 (D12)	* 46-060102 (TZ02)
Dimensions (W x L x H)	320 x 250 x 145 mm³ 12.60 x 9.84 x 5.71 in³
Net weight (excluding optional accessories)	6.5kgs (14.3 lbs)
