OPTIONAL ACCESSORIES

OPTIONAL TWEEZERS FOR SMD REWORK TWZ0- 24V/60W with 6 pin connector Designed for Models: 136, 136ESD, 137ESD & 988 TWZ50- 24V/60W with 5 pin connector Designed for Models: XY9-60A & XY9-60D

TWZ60 / TWZ50

FEATURES

• EASY TO USE:
  Make removing SMD chips and flat packs up to 25mm a snap.


• CERAMIC ELEMENTS:
  Long life, high insulation heating elements.


• DIRECT HEAT:
  Puts the heat where you want it without affecting the surrounding components.


SPECIFICATIONS

Part No.	TWZ 60					TWZ 50
Compatible Stations	136, 136ESD 137ESD, 988					XY9-60A, XY9-60D (From June 1st, 1999)
Pin connector	6 Pins					5 Pins
Heater Output	24Va.c.					24Va.c.
Heater Power	60W (2 x 30W)
Temperature	150-430 °C (320-830 °F)
Standard Tip	46-060102 (TZ02)

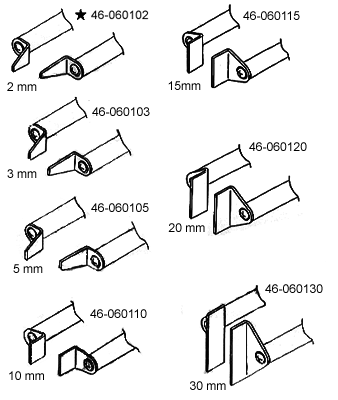

TWEEZER TIPS FOR TWZ60, TWZ50

---



---
