AUTO-TEMP 136ESD

AUTO-TEMP 136ESD
ELECTRONIC TEMPERATURE CONTROLLED SOLDERING STATIONS

Auto-Temp 136/136ESD temperature controlled soldering stations are engineered with a highly insulated ceramic heating element, incorporating a state of the art P.T.C. sensor to insure accurate temperature performance. Auto-Temp 136/136ESD are constructed of high quality materials, workmanship and incorporate the following features:

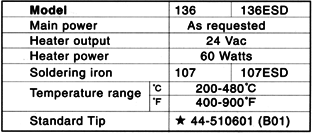

SPECIFICATIONS OPTIONAL FUME EXTRACTOR AND SMD TIPS

How to connect XY-FEA ?

TEMPERATURE RANGE ESD SAFE

Auto-Temp's Hassle Free" circuitry enables the user to fine tune tip temperature from 200 °C through 480 °C (400 ~ 900 °F ) without unnecessary tip or heating element changes. 136ESD exceeds all soldering equipment military specifications regarding electro static sensitive devices for critical applications where unwanted static discharges may damage components.

TEMPERATURE STABILITY LOCK-OUT FEATURE

Precision "Tip Temperature" Accuracy is mastered to within ± 3°C (6°F) Utilizing state of the art circuit technology and a built in P.T.C. sensor, located at the end of each ceramic heater shaft for accurate temperature control. Auto-Temp soldering stations are constructed with a lock-out feature to allow supervisors the ability to set and lock the stations at a specific temperature. This is accomplished with a special size allen head screw located on the front of the panel.

HEAT-UP AND RECOVERY HIGH INSULATION

Incorporates a long life Japanese made ceramic heating element with fast heat-up, fast recovery and exacting temperature control with minimal overshoot. Heat-up time to working temperature is attained in about 45 seconds. Superior Ceramic heater insulation rated over 100 Mohms at 400 °C (750 °F )

SPIKE FREE CIRCUITRY LIGHTWEIGHT SOLDERING IRON

"Zero Voltage" switching and fully grounded design meets military application standards for protection of electro-sensitive devices against line transience and voltage spikes. Tip leakage is less than 0.4 millivolts or 0.5 ohm resistance. Ergonomic mini handle that stays cool. Handle assembly cord is made from silicone rubber that won't be damaged when coming into contact with high temperature irons.
EXTERNAL CALIBRATION PORT ISOLATED & HIGH IMPACT

A calibration port is located on the face of the unit thus temperature adjustments are quick and convenient. The power unit is isolated from the A.C. line by a high quality transformer and only 24 Vac voltage is used to drive the heating element. The tough plastic PC housing is stronger to better withstand high impact bumps and abrasions. All materials meet UL standards.

SPECIFICATIONS	OPTIONAL FUME EXTRACTOR AND SMD TIPS
	How to connect XY-FEA ?

TEMPERATURE RANGE	ESD SAFE
Auto-Temp's Hassle Free" circuitry enables the user to fine tune tip temperature from 200 °C through 480 °C (400 ~ 900 °F ) without unnecessary tip or heating element changes.	136ESD exceeds all soldering equipment military specifications regarding electro static sensitive devices for critical applications where unwanted static discharges may damage components.
TEMPERATURE STABILITY	LOCK-OUT FEATURE
Precision "Tip Temperature" Accuracy is mastered to within ± 3°C (6°F) Utilizing state of the art circuit technology and a built in P.T.C. sensor, located at the end of each ceramic heater shaft for accurate temperature control.	Auto-Temp soldering stations are constructed with a lock-out feature to allow supervisors the ability to set and lock the stations at a specific temperature. This is accomplished with a special size allen head screw located on the front of the panel.
HEAT-UP AND RECOVERY	HIGH INSULATION
Incorporates a long life Japanese made ceramic heating element with fast heat-up, fast recovery and exacting temperature control with minimal overshoot. Heat-up time to working temperature is attained in about 45 seconds.	Superior Ceramic heater insulation rated over 100 Mohms at 400 °C (750 °F )
SPIKE FREE CIRCUITRY	LIGHTWEIGHT SOLDERING IRON
"Zero Voltage" switching and fully grounded design meets military application standards for protection of electro-sensitive devices against line transience and voltage spikes. Tip leakage is less than 0.4 millivolts or 0.5 ohm resistance.	Ergonomic mini handle that stays cool. Handle assembly cord is made from silicone rubber that won't be damaged when coming into contact with high temperature irons.
EXTERNAL CALIBRATION PORT	ISOLATED & HIGH IMPACT
A calibration port is located on the face of the unit thus temperature adjustments are quick and convenient.	The power unit is isolated from the A.C. line by a high quality transformer and only 24 Vac voltage is used to drive the heating element. The tough plastic PC housing is stronger to better withstand high impact bumps and abrasions. All materials meet UL standards.
