TWZ 60 OPTIONAL TWEEZERS FOR SMD REWORK

TWZ 60
OPTIONAL TWEEZERS FOR SMD REWORK

TWZ 60 - 24V/60W with 6 pin cibbector
Designed for Models: 136, 136ESD, 137ESD & 988
TWZ50-24V/60W with 5 pin Connector
Designed for Models: XY9-60A & XY9-60D

FEATURES:

EASY TO USE:

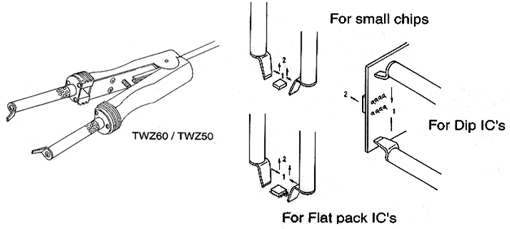

Makes removing SMD chips and flat packs up to 25mm a snap.
CERAMIC ELEMENTS:
Long life, high insulation heating elements.
DIRECT HEAT:
Puts the heat where you want it without affecting the surrounding components.

SPECIFICATIONS

Part No. TWZ 60 TWZ 50

Compatible
Stations 136, 136ESD
137ESD, 988 XY9-60A XY9-60D
(from June 1st, 1999)

Pin connector 6 Pins 5 Pins

Heater Output 24 Va.c. 24 Va.c.

Heater power 60 W (2x30W)

Temperature 150^o - 430^o (320-830^oF)

Standard Tip 46-060102 (TZ02)

Part No.	TWZ 60	TWZ 50
Compatible Stations	136, 136ESD 137ESD, 988	XY9-60A XY9-60D (from June 1st, 1999)
Pin connector	6 Pins	5 Pins
Heater Output	24 Va.c.	24 Va.c.
Heater power	60 W (2x30W)
Temperature	150^o - 430^o (320-830^oF)
Standard Tip	46-060102 (TZ02)
