FEATURES:

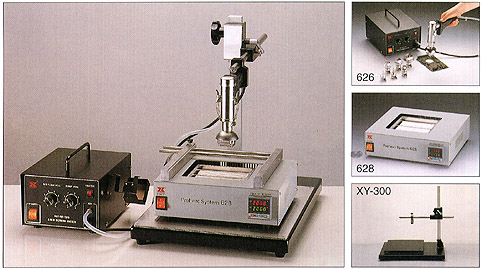

• Our simple 3 in 1 system is cost effective, easy to set up, add components as you need them while using the systems separately or together.


• Use with PLCC, QFP, SOP and SOJ etc. SMT devices. Heated air flows form both the top and bottom to more evenly heat the PCB and components to prevent warping or heat damage. Quick heat up time saves time and components. Perfect for rework stations or the production line.


• Many types of air focus nozzles available.


• The Preheat System 628 incorporates a long life ceramic heating element with a P.I.P. controller.
  Heat up time is fast and when the temperature is preset to 180°C or lower, the 628 makes an ideal preheat station providing a constant, stable heat supply that makes reworking components on the PCB assembly quick and easy no matter how large the board.


• The Hot Air 626 incorporates a powerful, quiet running air pump with a 300W ceramic heating element to offer quick heat up and a even, plentiful air flow. There are 30 types of focus hoods are available to meet most rework applications.


• The arm on the durable work platform is prefectly suited to the 626 hand assembly, reducing operator fatigue and allowing for quicker setup and removal of components. Our specially designed BGA re-balling kit is a perfectly suited to use with this rework system.

XY Table Dimension: 350 x 500 x 550mm (W x D x H)
