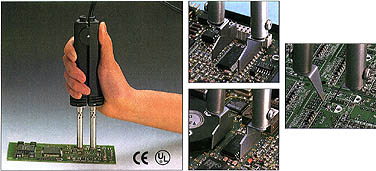

TWEEZER 226/236
SMD SOLDERING/DESOLDERING IRON



A unique concept for SMD soldering, desoldering and rework.		 FEATURES:
  • Provide a fast, efficient method to solder and desolder Surface Mount Devices.

  • Integrates two highly insulated, maximum efficiency ceramic elements to insure rapid heat up and recovery.

  • Light, compact, portable and economical.

  • Wide range of standard tips available.

  • Custom tips available upon request.

Model
236
226
Input
100-120 Va.c.
220-240 Va.c.
Heater power
25W x 2
20W x 2
Max. temperature
480°C (w/*tip)
896°F (w/*tip)
430°C (w/*tip)
806°F (w/*tip)
Standard tip
* 46-060102 (2mm)
